TIP2322 Right Rear Torsion Arm

Current Stock:
SKU: TIP2322
Weight: 3.25 LBS
Shipping Cost: Calculated at Checkout

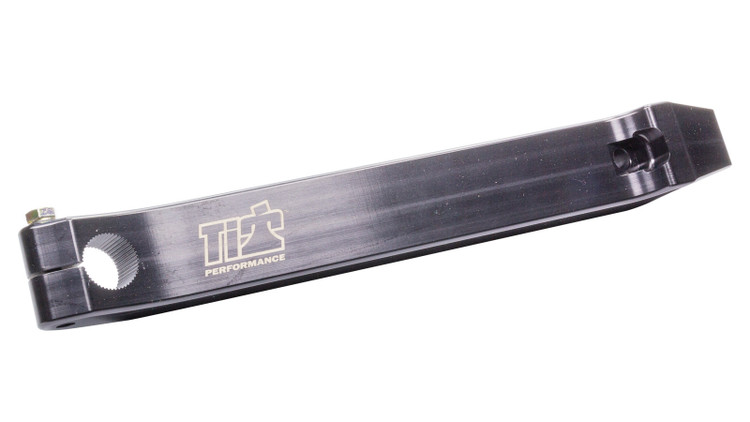

Right Rear Billet Torsion Arm – Clear Anodized

CNC machined out of a single solid block of 2024 aluminum, our billet torsion arms have the least deflection of any torsion arm on the market today. By machining them to shape rather than bending them, the structural weakness created by stretching the grain of the aluminum is eliminated, resulting in increased strength and stiffness. Clear anodized for corrosion resistance.

Weight-reducing pockets are machined out of the inside of the arm only. As a result, if tire rub occurs, it won’t chew up the inside surface of the tire. The use of high-strength 2024 aluminum also makes Ti22 torsion arms more resistant to conventional wear. Splines won’t wear out and the torsion arm won’t twist or bend under typical track conditions, making removal and reinstallation easier.

Torsion bar measures 13.25" from center of torsion bar hole to end, with a 5" offset, making it a direct replacement for conventional arms. Comes complete with installation hardware.

Tech Specs:

Material: 2024 Aluminum
Finish: Clear anodized
Location: Right rear
Length: 13.25" (from center of torsion bar hole to end).
Offset: 5" (bend from outer edge to rod end center line)
Weight: 2.9 lbs.

Item Specifics
Right Rear Torsion Arm, 13-1/4"" from Center Of Torsion Bar To Hole At End, 5" Offset, Natural Finish. CNC'd from a single block of 2024 billet aluminum, these torsion arms offer the least deflection of any torsion arm in the market. Lightening pockets are only on the inside of the arm eliminating any tire damage if tire rubbing should occur. Complete with all necessary hardware and available in natural or black anodized finish.
Alternate Description
Part Number
Vendor Part Number
Package Weight
3.25 lbs
Package Length
18.75 in
Package Width
4.25 in
Package Height
4.5 in
