The birdcage is the rotating hub that ties the torsion arm, radius rods, and shock to the rear axle, so everything the chassis does on corner entry passes through it. A cage that flexes or binds bleeds off horsepower and dulls the driver's feel. Precision bearings and a machined billet housing keep those pickup points located exactly where the setup expects.
Sold side-specific, so the correct hand matters when ordering.

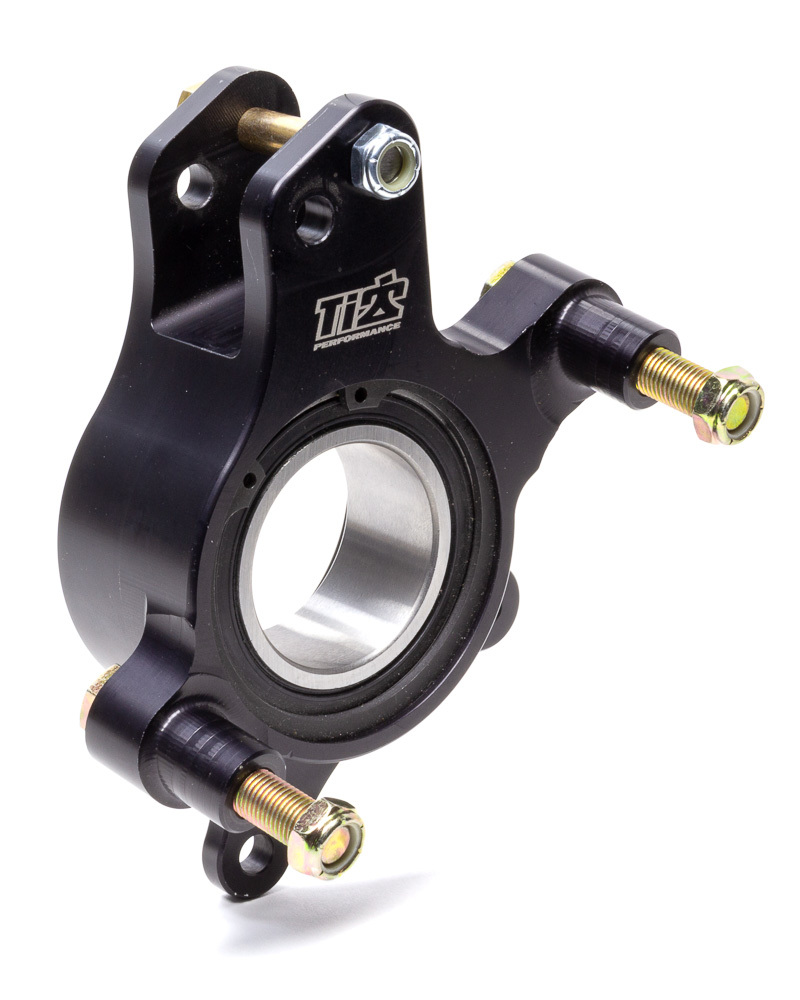

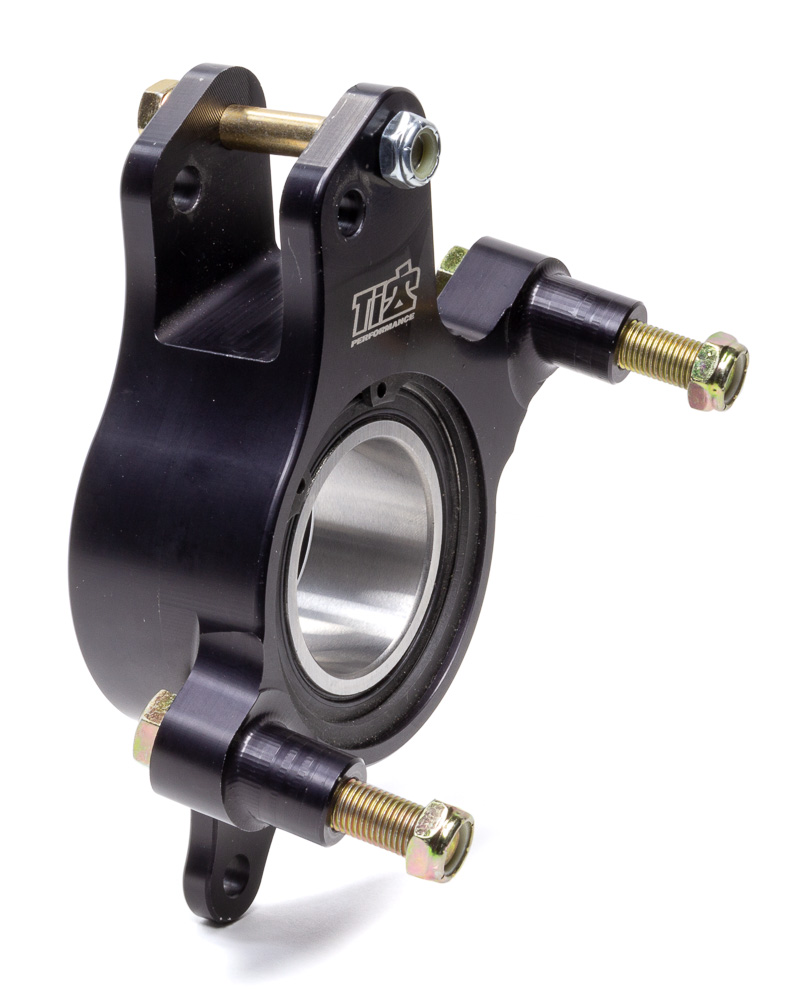

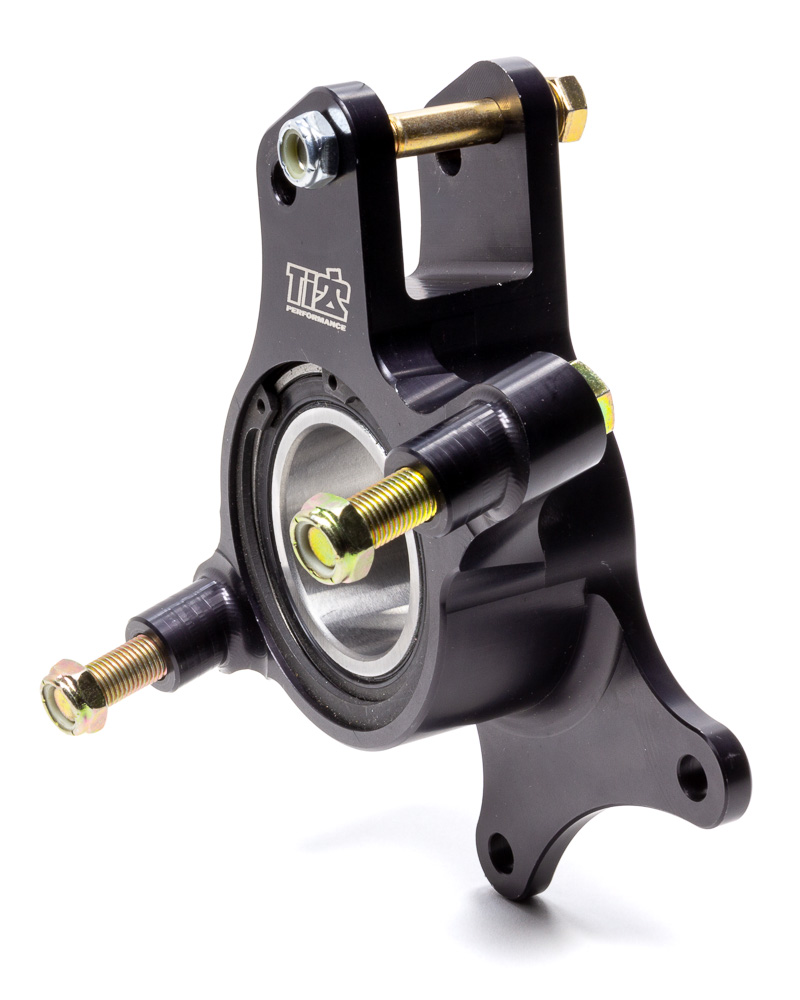

Specifically designed to help maintain the forward bite needed to win, panhard-style birdcages are manufactured from billet aluminum and feature a dual bearing design. Includes dual mounting holes for torsion arm shackle, while the left rear unit is drilled for a panhard clevis. Sold complete with bearings, snap ring, and bolts.
Choose from polished or black anodized finish. Double-row splined bearing inserts sold separately.
Details:
- Material: Aluminum
- Finish: Black Anodized
- Inside Diameter: 1.975 Inch
- Center To Center: 5-1/4 Inch
- Bearing Type: Bearing, Single Bearing
- Location: Passenger Side
- Vehicle Type: Micro / Mini
- Sold As: Kit
Specifications
| Part Number | TIP3912 |
|---|---|
| Cat 3 | Birdcages and Components |
| Country of Origin | USA |
| Shipping Weight | 2.712 lb |
| Shipping Dimensions (L x W x H) | 8 x 6 x 3 in |
⚠ CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product Information Sheet
